Product Detail:-

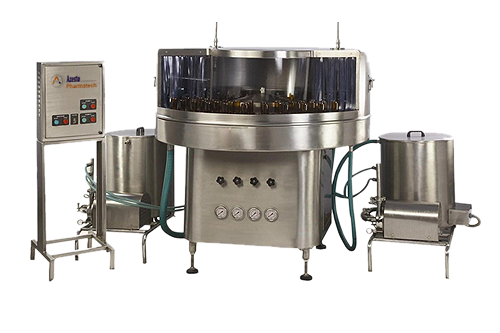

The rotary bottle washing machine is compact and highly efficient machine with elegant look. This multifunctional multi featured machine meets the AMP requirements of washing for glass and plastic bottles. The machine operates on the rotary principle with "AZESTO " mechanism and requires manual loading and unloading of bottles.

Operation:-

The bottles are loaded on the subsequent indexing part of rotating platform and are cleaned in series of operations. Specially designed bottle holders provided to hold bottles with neck diameter. The bottles are placed in an inverted position in these cup shaped holders. Spraying showers does the external cleaning of the bottles. Solenoid valves are provided to enable the regulation of wash timings, it also spraying water when bottle are stopped means ensure saving of water, and sequence of various washing media to suit specific requirement

Technical Specification:-

Model		Azesto - 64	Azesto - 96
Output / Hour (bottle)		2600 to 6000	4300 to 9000
No. of Container Holder		64	96
Direction of Movement		Clock Wise
Electrical Specificaton	Main Motor	0.5 HP / 415 Volts / 50 Hz.
	Pump Two Nos.	1 HP x 2 = 2 HP / 415 Volts / 50 HZ
	Electric Heater	3 Kw.
Tank Capacity		75 Ltrs. S.S. 304 (2 Nos.)
Wash Cycle		4 inner + 1 Outer
Working Heights		860 to 910 mm
Machine Dimensions (In mm) (L x W x H)		1500 x 1750 x 1300	1500 x 1750 x 1300
Case Dimensions (In mm) Two Cases (L x W x H)	Machine	1600 x 1600 x 1550	1600 x 1600 x 1550
	Tanks	1550 x 1000 x 1550	1550 x 1000 x 1550
Gross Weight		750 Kgs.	900 Kgs.
Change parts required		(A) Neck Dia: Bottle holding pocket. (B) Flat Container : Special type of cup.

Input Specification:-

ntainer Size**	Round Shape	Ø 30 mm to Ø 100 mm** Respectively Height 50mm x 270 mm*** Ø 20 to Ø 28 Neck**	Ø 30 mm to Ø 80 mm** Respectively Height 50mm x 270 mm*** Ø 20 to Ø 28 Neck**
	Flat Square***	30 mm to 100 mm (Length) Respectively 10 mm to 50 mm (Width) Respectively height 58 mm X 190 mm	30 mm to 80 mm (Length) Respectively 10 mm to 50 mm (Width) Respectively height 58 mm X 190 mm

* Depends on bottle size & operater speed.
** We can supply as per customer requirements.
*** With help of change parts.

Consumption of Water:-

Model	Azesto - 64	Azesto - 96
First Wash	200 Ltr /Hr.	230 Ltr./Hr.
Second Wash	No consumption as such, water loss during re-circulation shall be compensated.
Third Wash	200 Ltr /Hr.	230 Ltr./Hr.
Fourth Wash	No consumption as such, water loss during re-circulation shall be compensated OR Air Wash
Outside Wash	200 Ltr /Hr.	200 Ltr /Hr.

Salient Features:-

Four inner (Included one air wash) & one outer.
Sequence of washes to customer's choice.
Easy operation.
Stationary nozzles eliminate contamination of water cycles.
Easy loading and unloading.
Individual solenoid valve for each washing sequence that eliminates carbon plate and other accessories reduces leakage and maintenance to minimum.
WHigher capacity centrifugal pumps to wash bigger bottles (500 & 1000 ml.).
The stationary nozzles avoid chipping of bottle necks.
Pumps and tanks are mounted on portable stand for easy maintenance.
Bottle guide system especially for lightweight bottle.
Pumps and Tanks are mounted on portable stand for easy maintenance.
Separate panel control to avoid any short circuit due to spraying of water.
S.S. glycerin fill pressure meter.

Utility Requirement:-

Electrical Supply:	Three Phase + Neutral + Earthing
Electrical Load:	2 KW + 3KW for heater
Air Pressure:	Minimum : 6 bar pressure 5 CFM
