Ribbon Blender >>


...
Product Detail:-

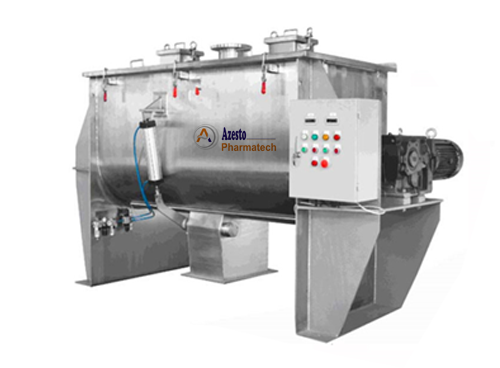

Ribbon Blender


Operation:-

The Ribbon Blender is an efficient and versatile blending machine for mixing of dry granules & powders homogeneously. Approximate two third of the volume of the container of Ribbon Blender is filled to ensure proper mixing. The Ribbon Blender gives best result for mixing of dry powder & granules due to the design and shape of the mixing ribbon and product container. It can be used for Pharmaceutical, Food, Chemical and Cosmetic products etc.


Material in Ribbon Blender should be charge from the top side. There are port/ports should be provided on the top cover to charge the material as well as for air vent. One discharge valve provided at the bottom side at center of the container. The discharge height could be adjusted as per the requirement, so that material gets discharge in the other container directly, so that material handling time for discharge is nil and the operation is dust free.


In Ribbon Blender the powder moves from center to the end of container and end of container to the center of container. Hence requirement of total mixing time is very less and the RPM required are also very less. The dry material gets sufficient continuous movement due to the shape & movement of ribbon & shape of the container. This moves material for good quality of blending.


The Ribbon Blender is consist of one electrical motor, one worm reduction gear, belt drive between motor and gear, couple drive between gear to ( ribbon ) mixing stirrer. Ribbon Blender container have four no of legs with discharge valve & top cover. Both ends of mixing shafts are sealed with bush & PTFE gland housing & safety guards are provided on all moving parts.


Salient Features:-

Octagonal Blender contains following main features


The shape of container and mixing stirrer gives sufficient continuous movement to the powder / granules result in good quality.
All contact parts of Ribbon Blender are made out of SS304/SS316 quality material.
Maximum care has been taken to ensure safe operation of the Ribbon Blender.
Inching facility for stirrer for discharge of material.
Full cover on top side of the container.
Discharge height as per client requirement.
Operating panel provided for safe operation of Ribbon Blender.
Centrally located material Discharge valve
Dust proof top cover with window provided.
General structure completely made out of mild steel & painted in Standard Model & the same is cladded with SS304 in GMP model
Safety Guards & Covers made out of SS304 in GMP Model & made out of mild steel in Standard Model.
Legs made out of M.S & painted in Standard Model & same will be cladded with SS304 in GMP Model

Technical Specification:-

MODEL Azesto - MM-50 Azesto - MM-100 Azesto - MM-150 Azesto - MM-200 Azesto - MM-300
Working Capacity 110 Ltr. 220 Ltr. 330 Ltr. 440 Ltr. 560 Ltr.
Speed of Stirrer 35 RPM 35 RPM 30 RPM 25 RPM 20 RPM
Electrical Motor 3hp/2.2Kw/144RPM /415 v/50 Hz/ 3phase 5 hp/3.7 kw/144 RPM/415 v/50 Hz/3phase 7.5hp/5.5 kw/ 144 RPM/415v/50Hz/ 3phase 10 hp/5.5kw/144RPM / 415v/50 Hz/ 3phase 15 hp/7.4kw/144RPM /415v/50 Hz/3phase
Over all dimensions in mm  L x B x H 1700x740x940  L x B x H 2300x7400x940  L x B x H 2135x790x1300  L x B x H 2475x100x1500  L x B x H2650x1050x1600
Case dimension in mm 1900x950x1150 1900x950x1150 2350x1000x1500 2475x1000x1500 2650x1050x1600
Net weight in kgs. 350 450 550 600 700
Gross weight in Kgs. 450 600 750 850 1000
